Feature & Advantage:

High grinding efficiency

High precision and good surface quality

Easy to dress

Application :

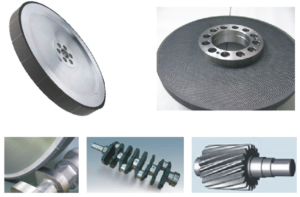

For precise and high-speed grinding the camshaft

For precise and high-speed grinding the crankpin, main journal, flange neck, thrust face and end face

For precise and high-speed grinding the gear shaft

Materials to grind:

Cast iron : Chilled cast iron, nodular cast iron, grey cast iron, alloy cast iron and etc

Steel: 20Cr, GCr15, CF53, 45# steel, 55# steel, 80B high carbon steel and etc

Grinder:

LANDIS: LT1, LT2

SCHAUDT: CF41, CF61, ZEUSMX, ZX

NAXOS: NAXOS-UNION, P310*1250, GF70

JUNKER: JUCAM5002/10, JUCAM500, JUCRANK5000, 6000

TOYODA: GCS63, GL5P-63, GL6P-100, GCH120B, GC32M-63, GCH63B, GL63M-T

Conventional Specifications:

1A1, 3A1, 14A1, 9A1B, 3Q1, 14LL1
